Efficient Home EV Charging Solution

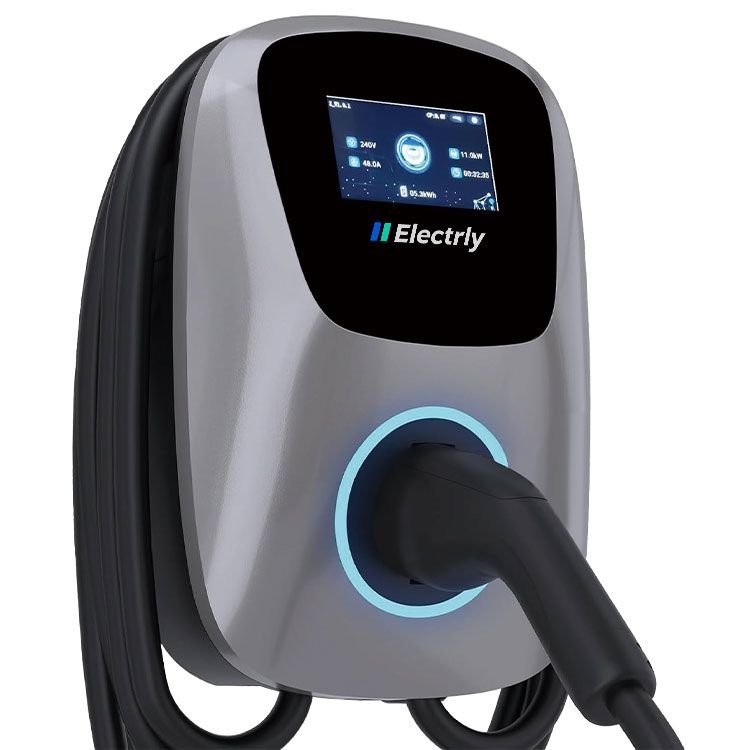

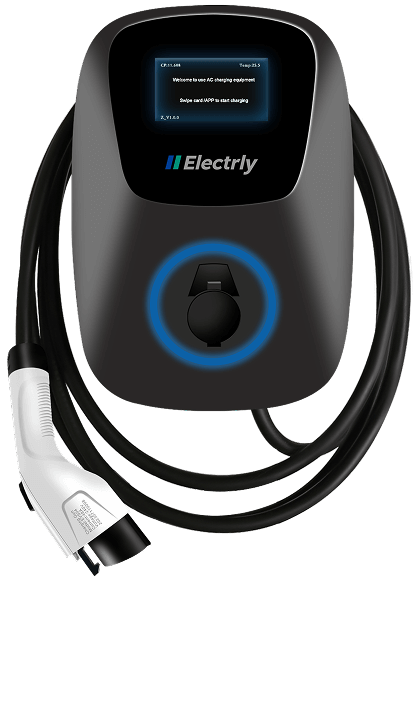

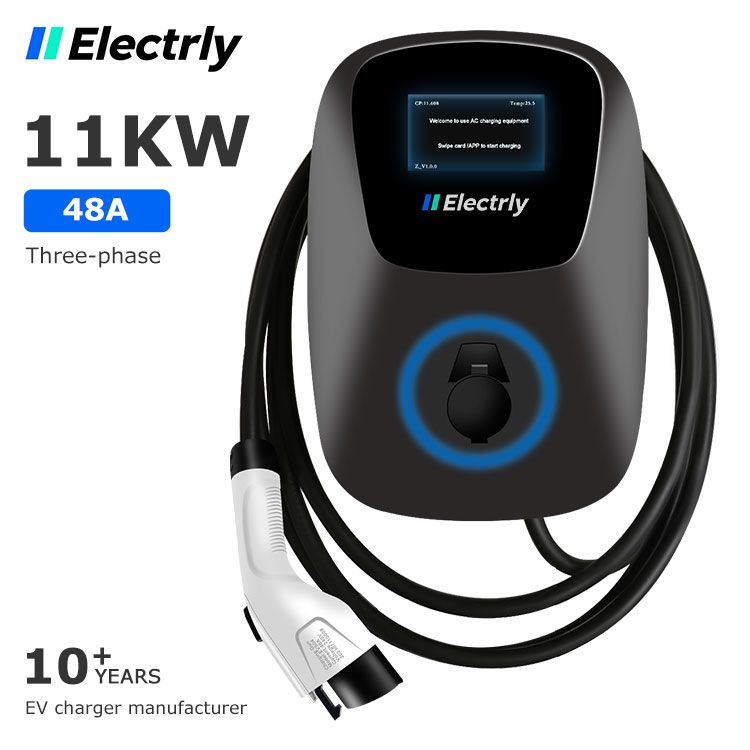

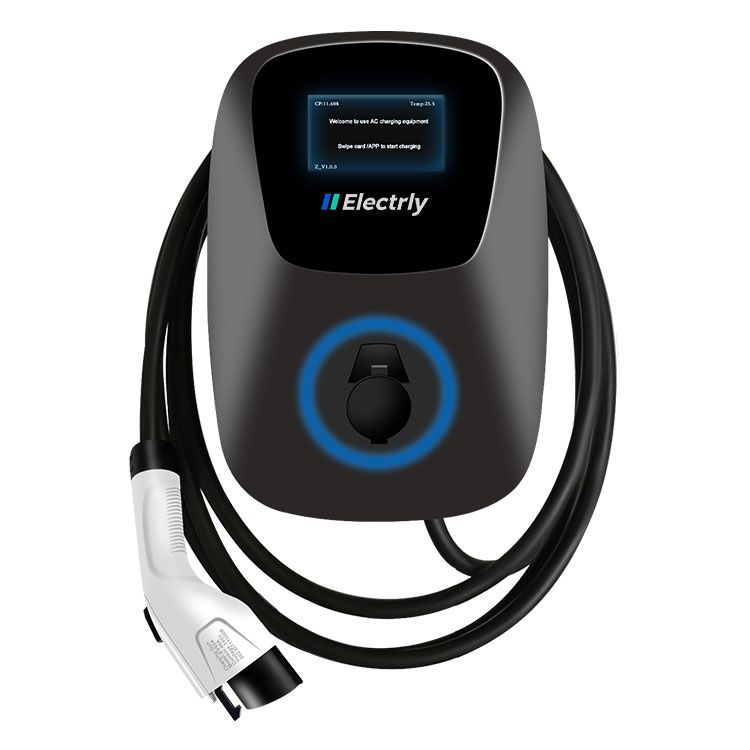

Volt Go A57 is a robust Level 2 home charger that offers flexible power options from 7 kWto 22 kW, catering to diverse electric vehicle charging needs. With its impressive IP65 rating, the Volt Go A57 is engineered to withstand outdoor elements, providing reliable charging in any weather condition.

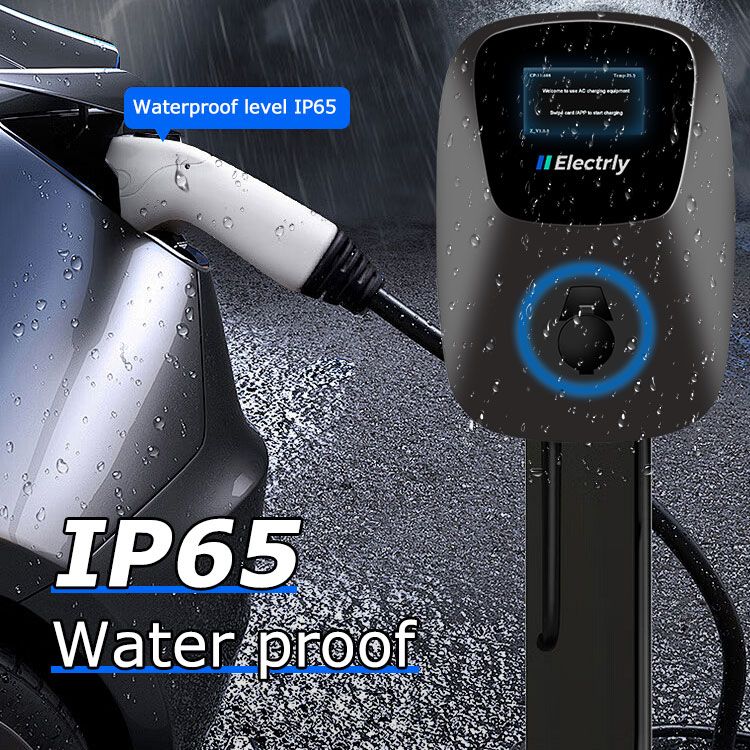

IP65 rated - ready for outdoor use
Type 1 & 2 connector
4.3" LCD display
Wi-Fi and app control
Certification:
Volt Go - A57 Full Specs
| 7KW EU Standard | 11KW EU Standard | 22KW EU Standard | 7KW US Standard | 9.6KW US Standard | 11KW US Standard | |
|---|---|---|---|---|---|---|
| Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE | L1+L2+PE | L1+L2+PE | L1+L2+PE |
| Rated Voltage | AC 220-240V | AC 380-400V | AC 380-400V | AC 208-240V | AC 208-240V | AC 208-240V |
| Rated Current | 32A (32A, 16A, 10A adjustable) | 16A (16A, 10A adjustable) | 32A (32A, 16A, 10A adjustable) | 32A (32A, 16A, 10A adjustable) | 16A (16A, 10A adjustable) | 32A (32A, 16A, 10A adjustable) |
| Output Voltage | AC 220-240V | AC 380-400V | AC 380-400V | AC 220-240V | AC 380-400V | AC 380-400V |
| Maximum Current | 32A (32A*2, 16A, 10A adjustable) | 16A (16A, 10A adjustable) | 32A (32A, 16A, 10A adjustable) | 32A (32A, 24A adjustable) | 40A (40A, 32A, 24A adjustable) | 48A (48A, 40A, 32A, 24A adjustable) |

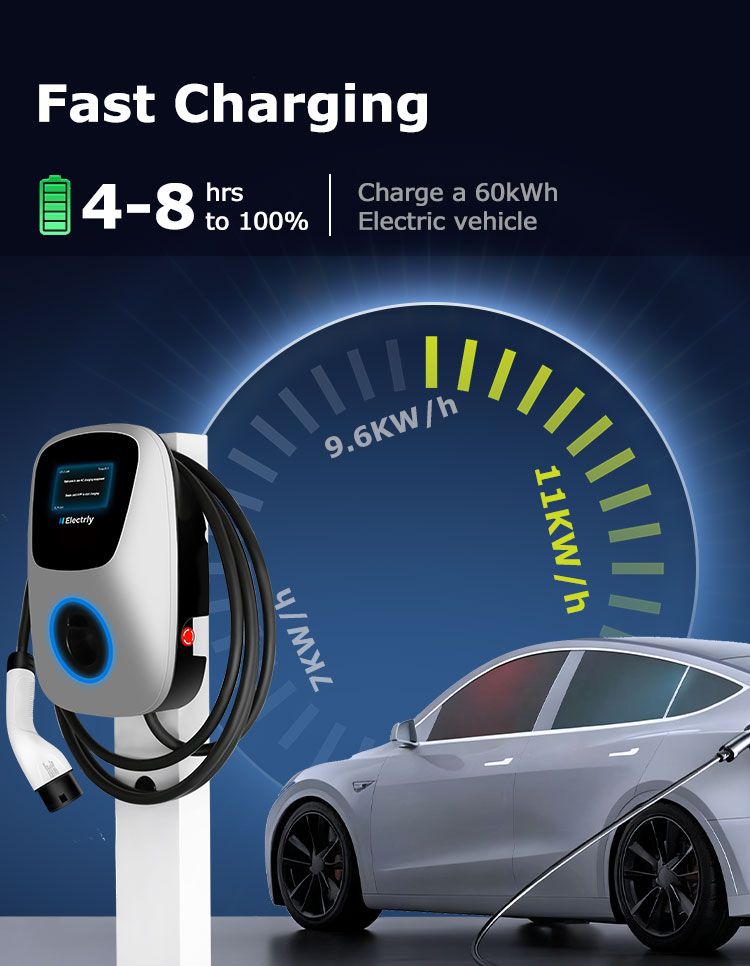

| Rated Power | 7KW | 11KW | 22KW | 7KW | 9.6KW | 11KW |
| Charger Connector | Type 2 Cable | Type 2 Cable | Type 2 Cable | SAE J1172, Type 1 | SAE J1172, Type 1 | SAE J1172, Type 1 |
| Cable Length | 5 m | 5 m | 5 m | 5 m | 5 m | 5 m |
| Material | ABS | ABS | ABS | ABS | ABS | ABS |
| Color | Black+Silver | Black+Silver | Black+Silver | Black+Silver | Black+Silver | Black+Silver |
| Ring LED Strip | Yes | Yes | Yes | Yes | Yes | Yes |
| LED Display | 4.3" LED Screen | 4.3" LED Screen | 4.3" LED Screen | 4.3" LED Screen | 4.3" LED Screen | 4.3" LED Screen |
| Plug in and Charge | Yes | Yes | Yes | Yes | Yes | Yes |
| APP | Yes | Yes | Yes | Yes | Yes | Yes |
| MID Energy Meter | No | No | No | No | No | No |
| WiFi/Bluetooth | Yes | Yes | Yes | Yes | Yes | Yes |
| Ethernet/LAN | No | No | No | No | No | No |
| 4G/SIM | No | No | No | No | No | No |
| OCPP 1.6J Ethernet | No | No | No | No | No | No |
| Ingress Protection | Outshell IP65 | Outshell IP65 | Outshell IP65 | Outshell IP65 | Outshell IP65 | Outshell IP65 |
| Impact Protection | IK10 | IK10 | IK10 | IK10 | IK10 | IK10 |
| Overcurrent Protection | Yes | Yes | Yes | Yes | Yes | Yes |
| Residual Current Protection (AC 30mA + DC 6mA) | Yes | Yes | Yes | Yes | Yes | Yes |
| Ground Monitor | Yes | Yes | Yes | Yes | Yes | Yes |
| Surge Protection | Yes | Yes | Yes | Yes | Yes | Yes |
| Over/Under Voltage Protection | Yes | Yes | Yes | Yes | Yes | Yes |
| Over Temperature | Yes | Yes | Yes | Yes | Yes | Yes |
| Certification | CE | CE | CE | CE | CE | CE |
| Certification Standard | EN IEC 61851, EN 62196 | EN IEC 61851, EN 62196 | EN IEC 61851, EN 62196 | UL 2594:2022 / CSA C22.2#280:2022 | UL 2594:2022 / CSA C22.2#280:2022 | UL 2594:2022 / CSA C22.2#280:2022 |
| Warranty | 2 years | 2 years | 2 years | 2 years | 2 years | 2 years |

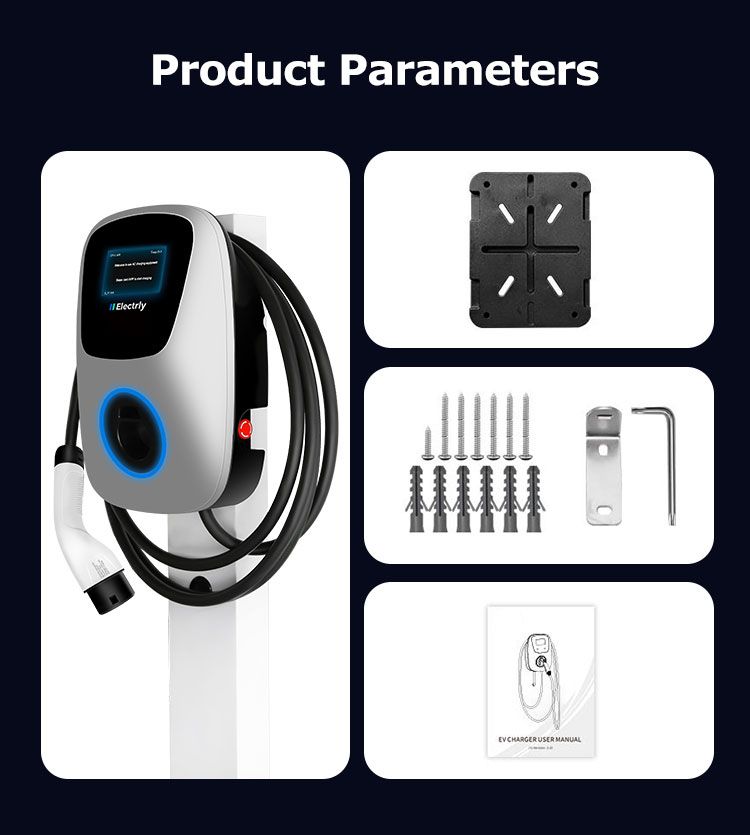

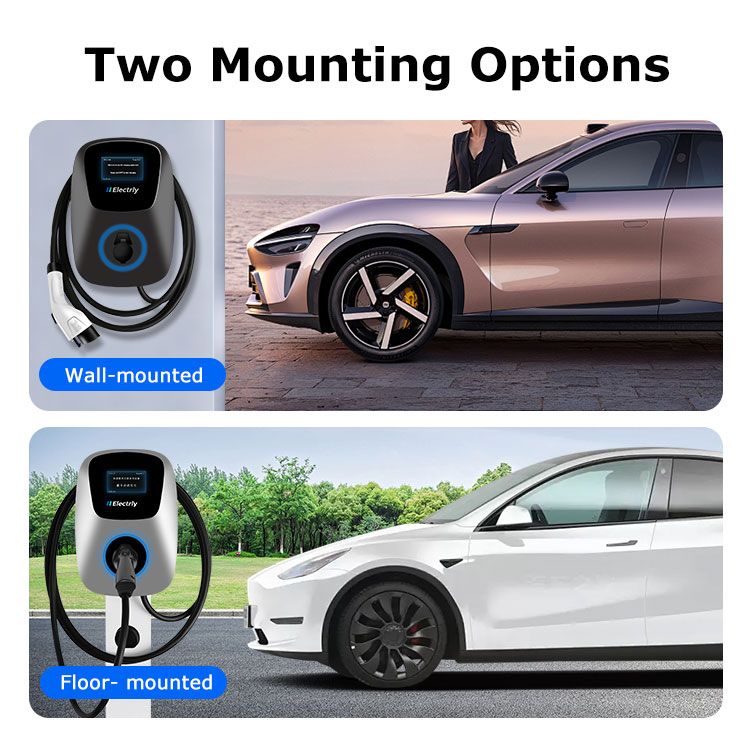

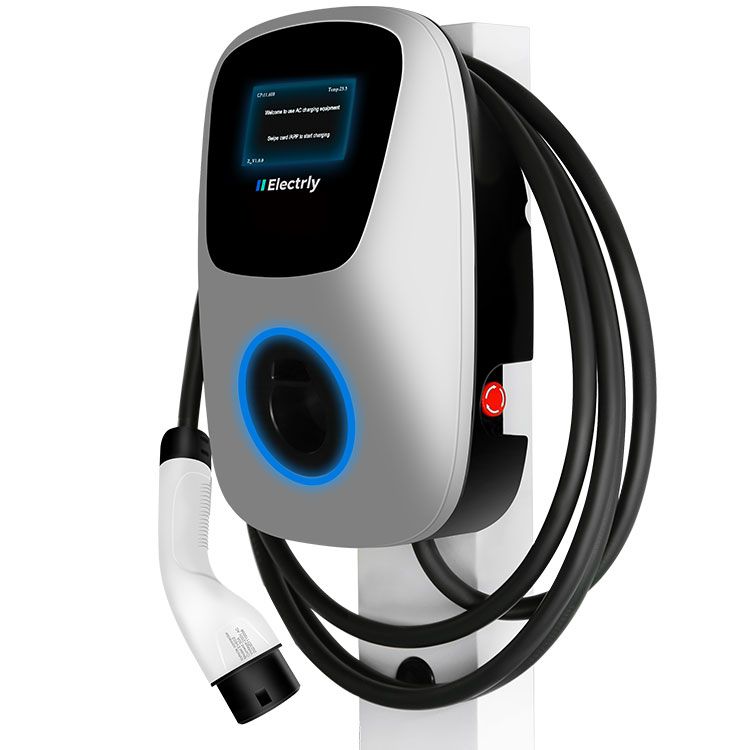

| Installation | Wall-mount / Pole-mount | Wall-mount / Pole-mount | Wall-mount / Pole-mount | Wall-mount / Pole-mount | Wall-mount / Pole-mount | Wall-mount / Pole-mount |
| Work Temperature | -25°C to 50°C | -25°C to 50°C | -25°C to 50°C | -25°C to 50°C | -25°C to 50°C | -25°C to 50°C |
| Work Humidity | 3% to 95% | 3% to 95% | 3% to 95% | 3% to 95% | 3% to 95% | 3% to 95% |
| Work Altitude | < 2000m | < 2000m | < 2000m | < 2000m | < 2000m | < 2000m |
| Production Dimension (H*W*D) mm | 368*256.5*130 mm | 368*256.5*130 mm | 368*256.5*130 mm | 368*256.5*130 mm | 368*256.5*130 mm | 368*256.5*130 mm |
| Package Dimension (L*W*H) mm | 440*400*200 mm | 440*400*200 mm | 440*400*200 mm | 440*400*200 mm | 440*400*200 mm | 440*400*200 mm |
| Net Weight | 5.4 kg | 5.4 kg | 5.4 kg | 5.4 kg | 5.4 kg | 5.4 kg |
| Gross Weight | 7.5 kg | 7.5 kg | 7.5 kg | 7.5 kg | 7.5 kg | 7.5 kg |
| External Package | Carton | Carton | Carton | Carton | Carton | Carton |
