Smart Commerical EV Charging Solution

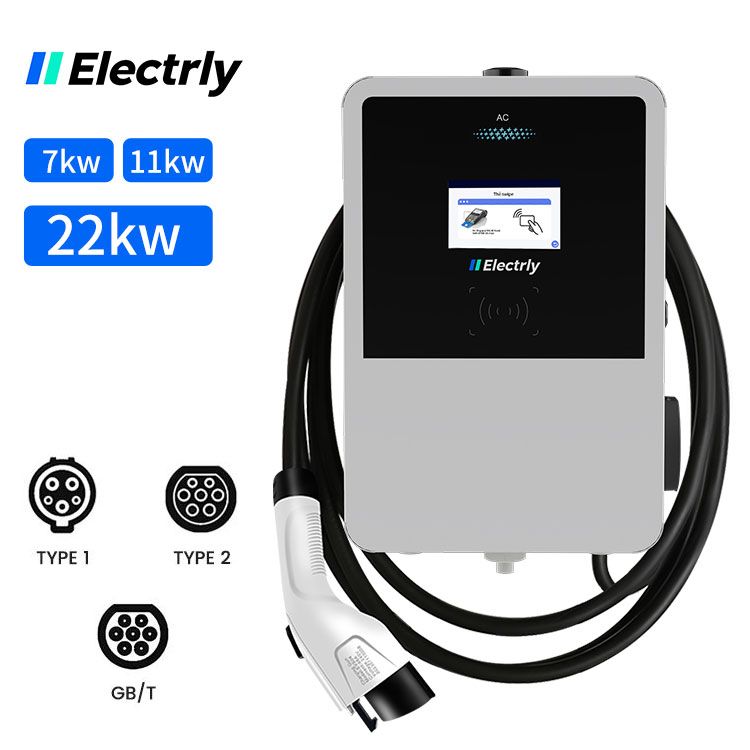

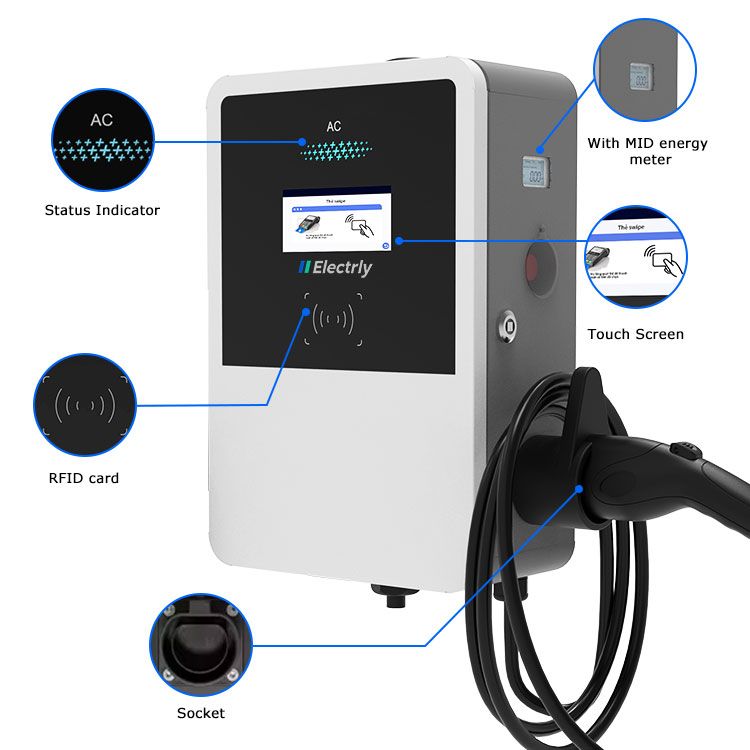

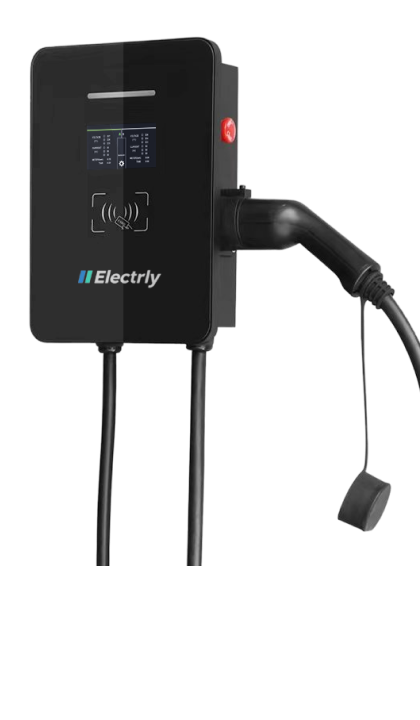

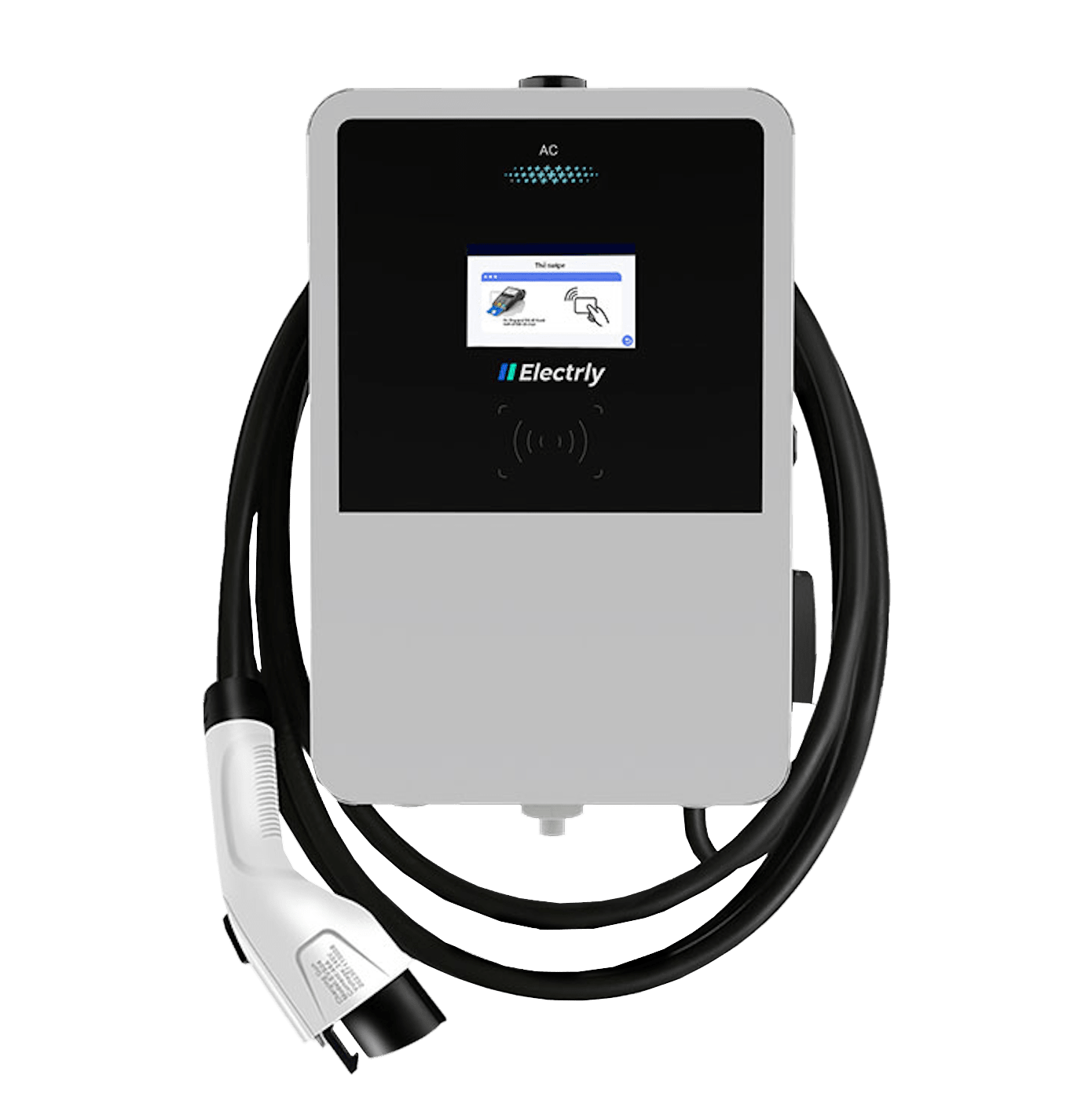

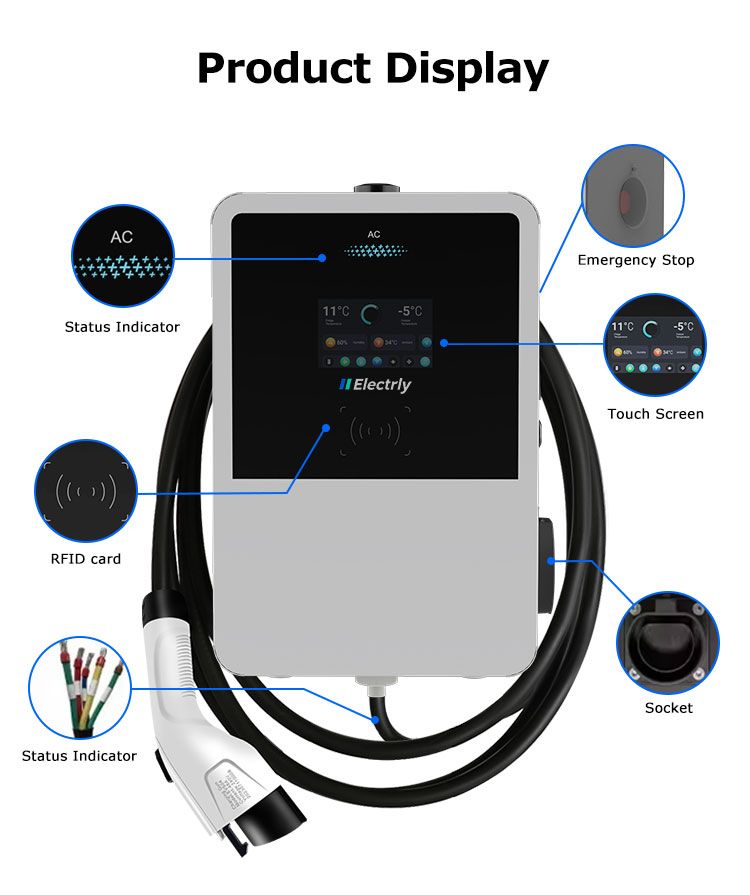

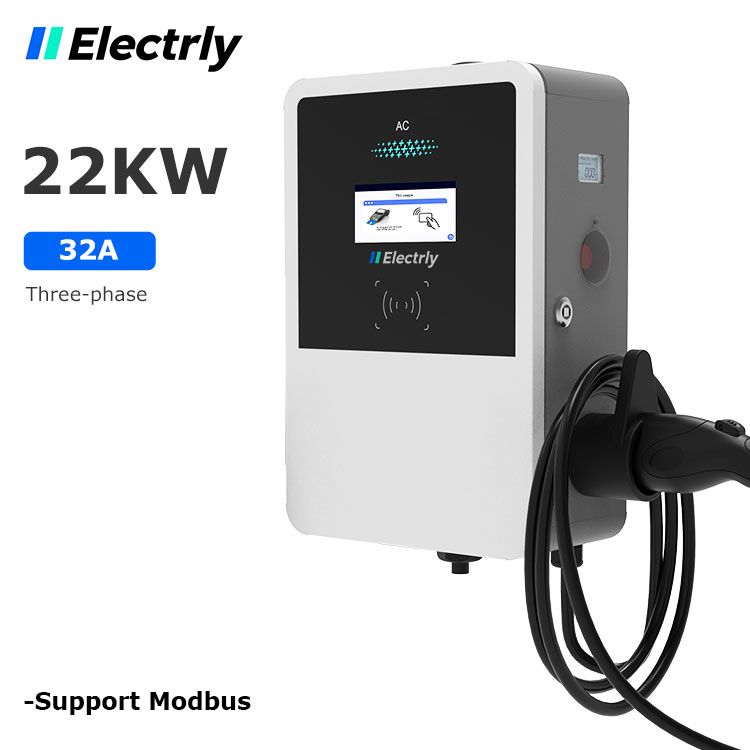

Energi Flow A6 is an advanced Level 2 charger that offers flexible power output ranging from 7 kW to 22 kW, with adjustable current settings to accommodate various electric vehicle charging requirements. Boasting UL-listed certification, the Energi Flow A6 guarantees top-tier safety and performance standards.
UL listed certificate
Wi-Fi, 4G, and Ethernet connectivity
RFID authentication and app remote control
Equipped with multiple protection functions
Certification:
Energi Flow - A6 Full Specs
| 7KW | 11KW | 22KW | |
|---|---|---|---|
| Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Rated Voltage | AC 220-240V | AC 380-400V | AC 380-400V |
| Rated Current | 32A (32A, 16A, 10A adjustable) | 16A (16A, 10A adjustable) | 32A (32A, 16A, 10A adjustable) |
| Output Voltage | AC 220-240V | AC 380-400V | AC 380-400V |
| Maximum Current | 32A (32A*2, 16A, 10A adjustable) | 16A (16A, 10A adjustable) | 32A (32A, 16A, 10A adjustable) |
| Rated Power | 7KW | 11KW | 22KW |
| Charger Connector | Type 2 Cable | Type 2 Cable | Type 2 Cable |
| Cable Length | 5 m | 5 m | 5 m |

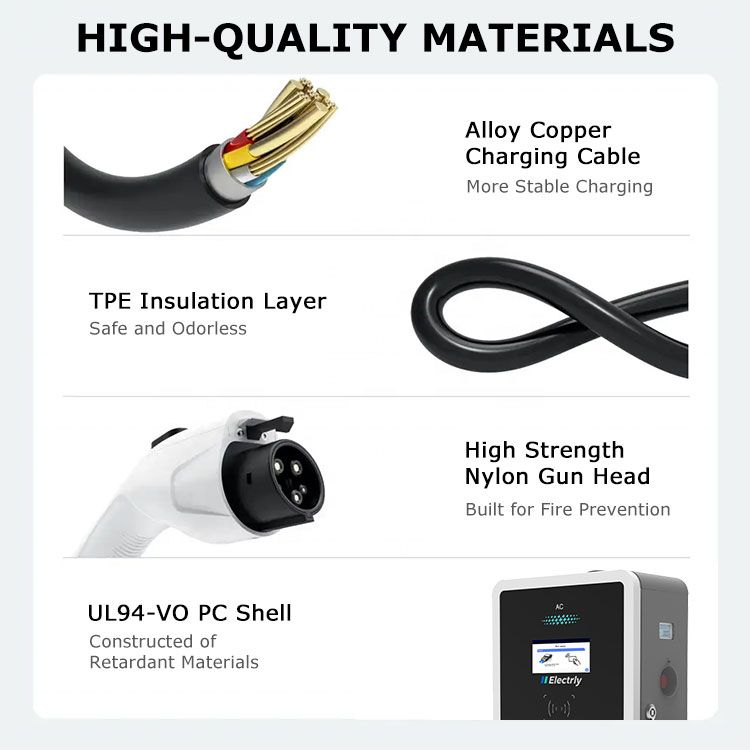

| Material | Steel+ABS | Steel+ABS | Steel+ABS |
| Color | Black | Black | Black |
| Three Color LED | Yes | Yes | Yes |
| LED Display | 4.3" LED Touch Screen | 4.3" LED Touch Screen | 4.3" LED Touch Screen |
| Plug in and Charge | Yes | Yes | Yes |
| App | No | No | No |
| MID Energy Meter | Yes | Yes | Yes |
| WiFi/Bluetooth | Yes | Yes | Yes |
| Ethernet/LAN | Yes | Yes | Yes |
| 4G/SIM | Option | Option | Option |
| OCPP 1.6J Ethernet | Yes | Yes | Yes |

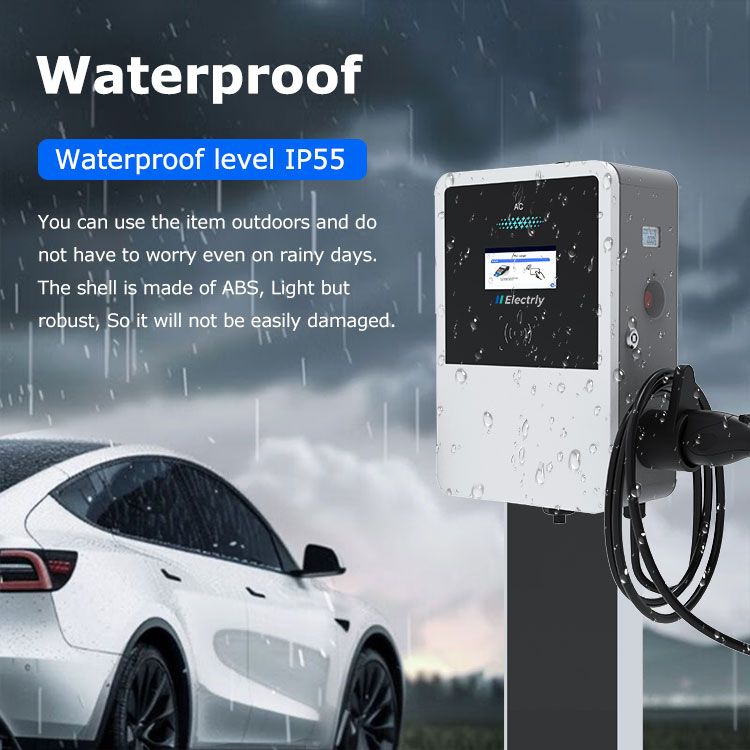

| Ingress Protection | Outshell IP65 | Outshell IP65 | Outshell IP65 |
| Impact Protection | No | No | No |
| Overcurrent Protection | Yes | Yes | Yes |
| Residual Current Protection (AC 30mA, DC 6mA) | Yes | Yes | Yes |
| Ground Monitor | Yes | Yes | Yes |
| Surge Protection | Yes | Yes | Yes |
| Over/Under Voltage Protection | Yes | Yes | Yes |

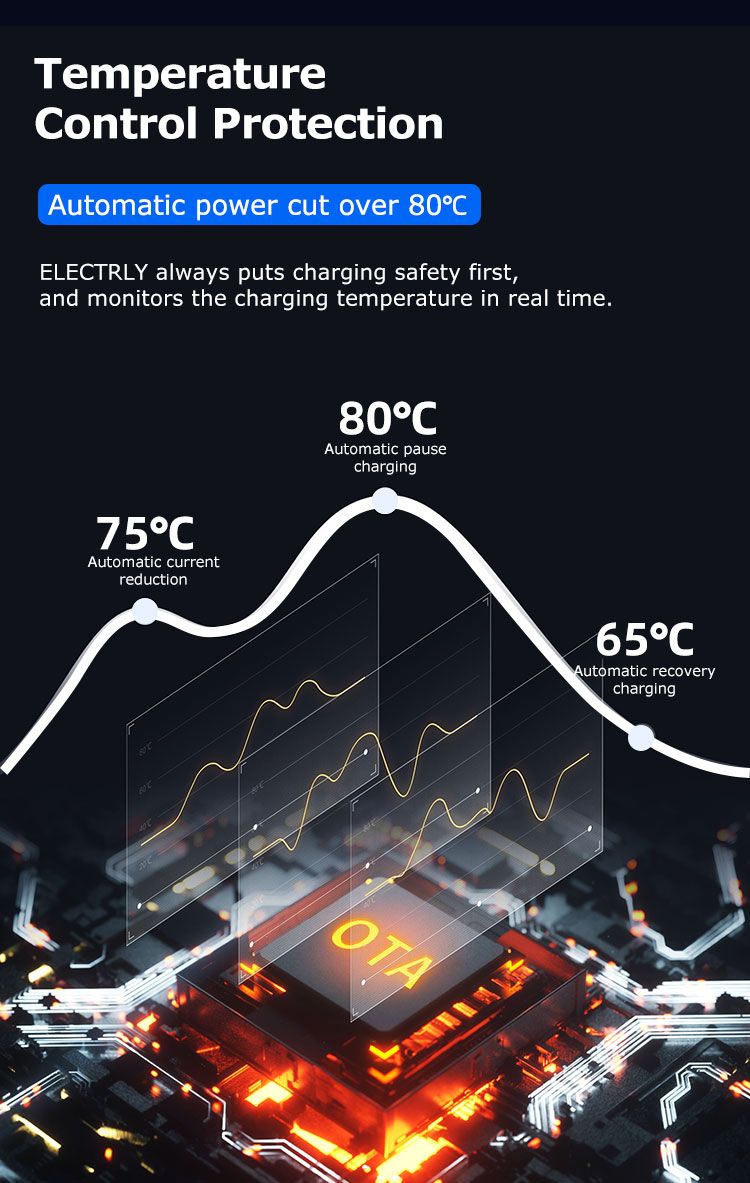

| Over Temperature | Yes | Yes | Yes |
| Certification | CE | CE | CE |
| Certification Standard | EN IEC 61851, EN 62196 | EN IEC 61851, EN 62196 | EN IEC 61851, EN 62196 |
| Warranty | 2 years | 2 years | 2 years |

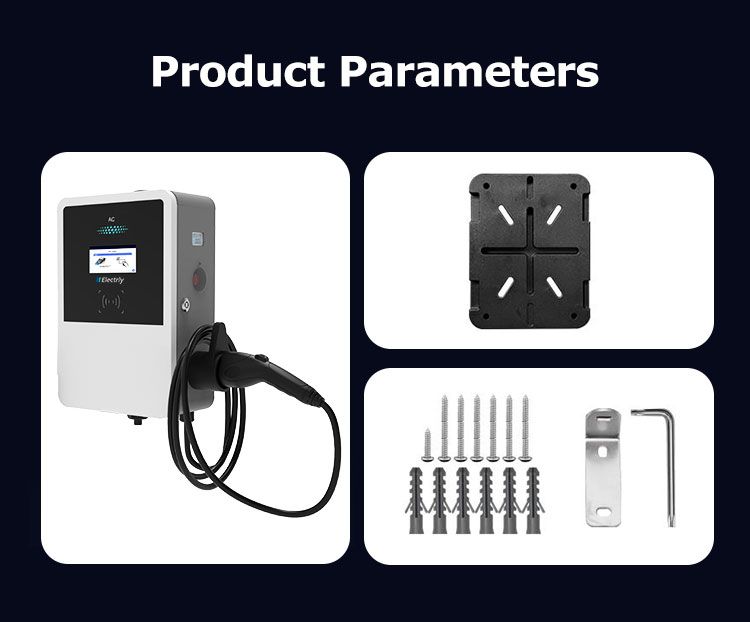

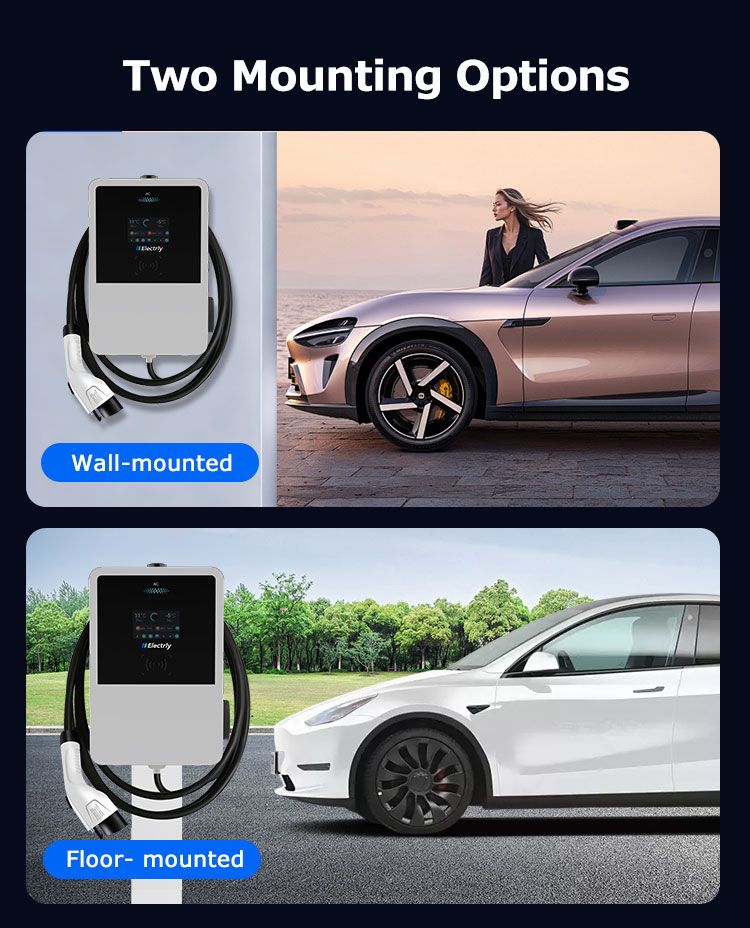

| Installation | Wall-mount / Pole-mount | Wall-mount / Pole-mount | Wall-mount / Pole-mount |
| Work Temperature | -25°C to 50°C | -25°C to 50°C | -25°C to 50°C |
| Work Humidity | 3% to 95% | 3% to 95% | 3% to 95% |
| Work Altitude | < 2000m | < 2000m | < 2000m |
| Production Dimension (H*W*D) mm | 440*300*280 mm | 440*300*280 mm | 440*300*280 mm |
| Package Dimension (L*W*H) mm | 480*320*300 mm | 480*320*300 mm | 480*320*300 mm |
| Net Weight | 5 kg | 5 kg | 5 kg |
| Gross Weight | 7.5 kg | 7.5 kg | 7.5 kg |
| External Package | Carton | Carton | Carton |
