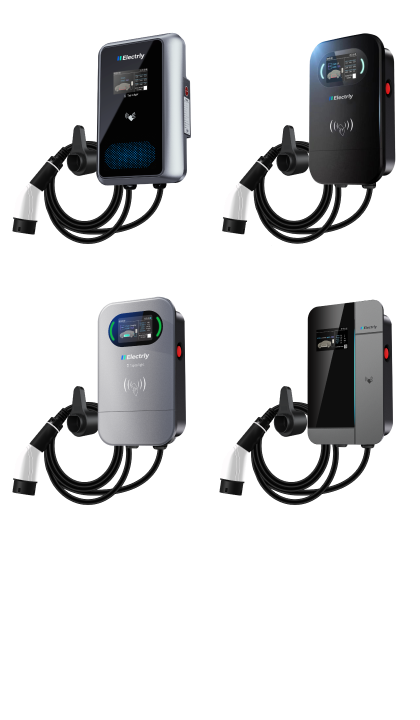

Extensively Compatible & Efficient EV Charger

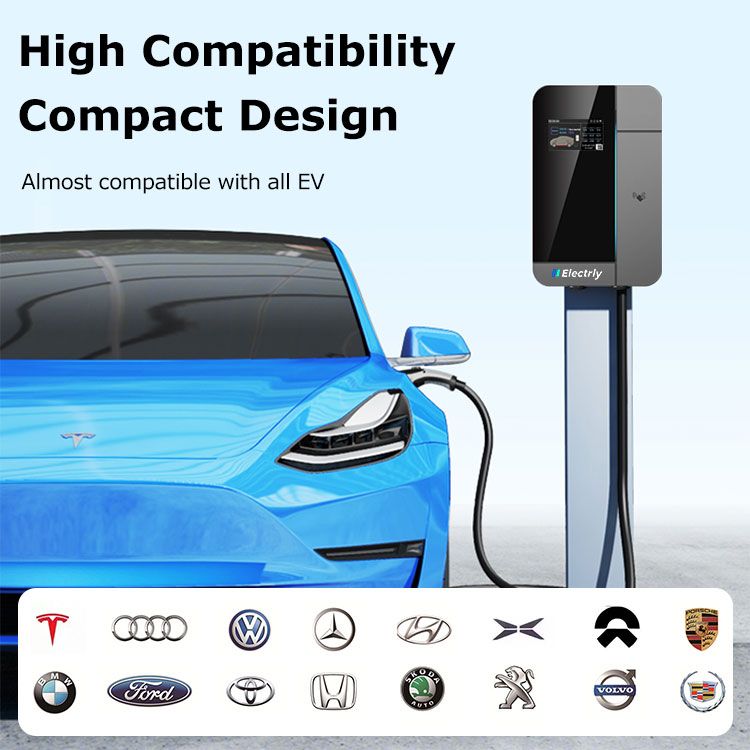

Electri Charge A19/A20/A21/A23 is a Level 2 home charger that offers an impressive charging range from 7kW to 22kW, ensuring rapid and efficient charging for a wide variety of electric vehicles. Featuring a Type 2 connector, the Electri Charge A19/A20/A21/A23 provides universal compatibility with most European and international EV models.

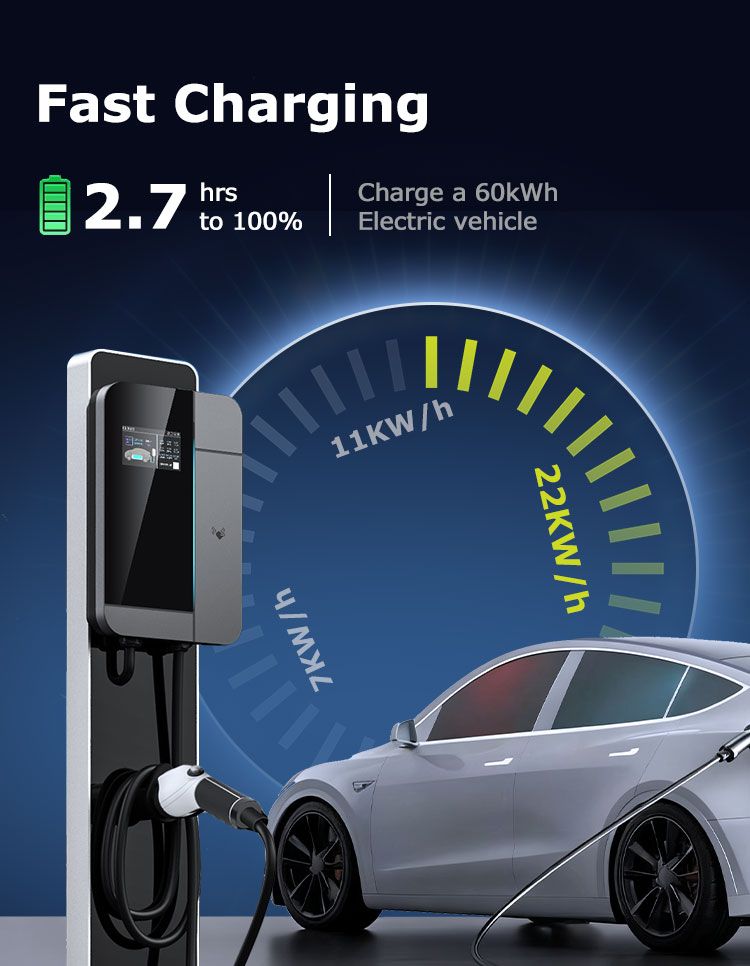

Max Power up to 22kW
Type 2 Connector

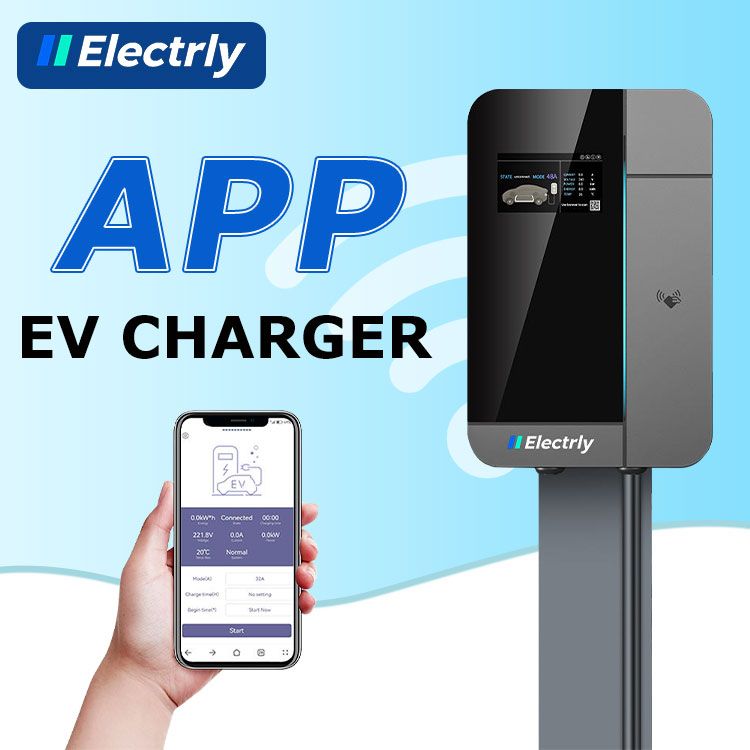

Smart Mobile APP Control
Wi-Fi Connectivity

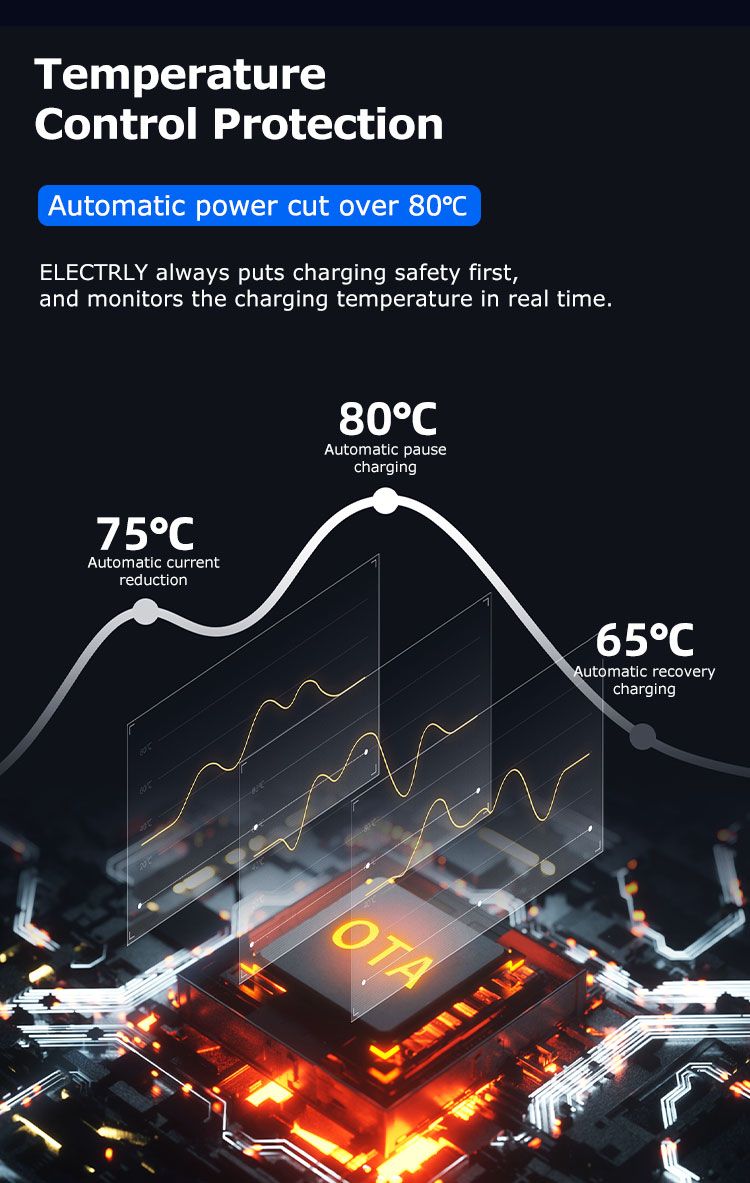

Over Temperature Protection
Certification:

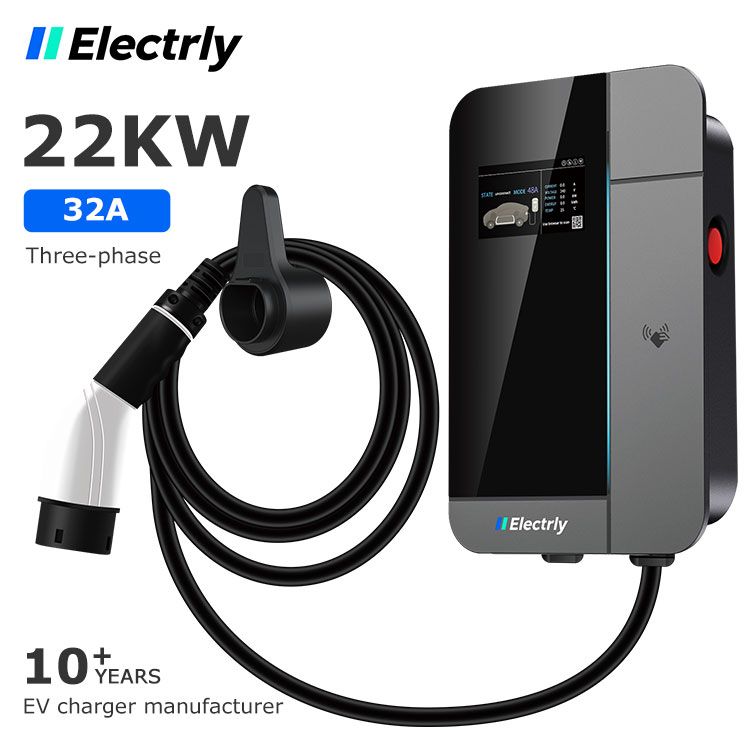

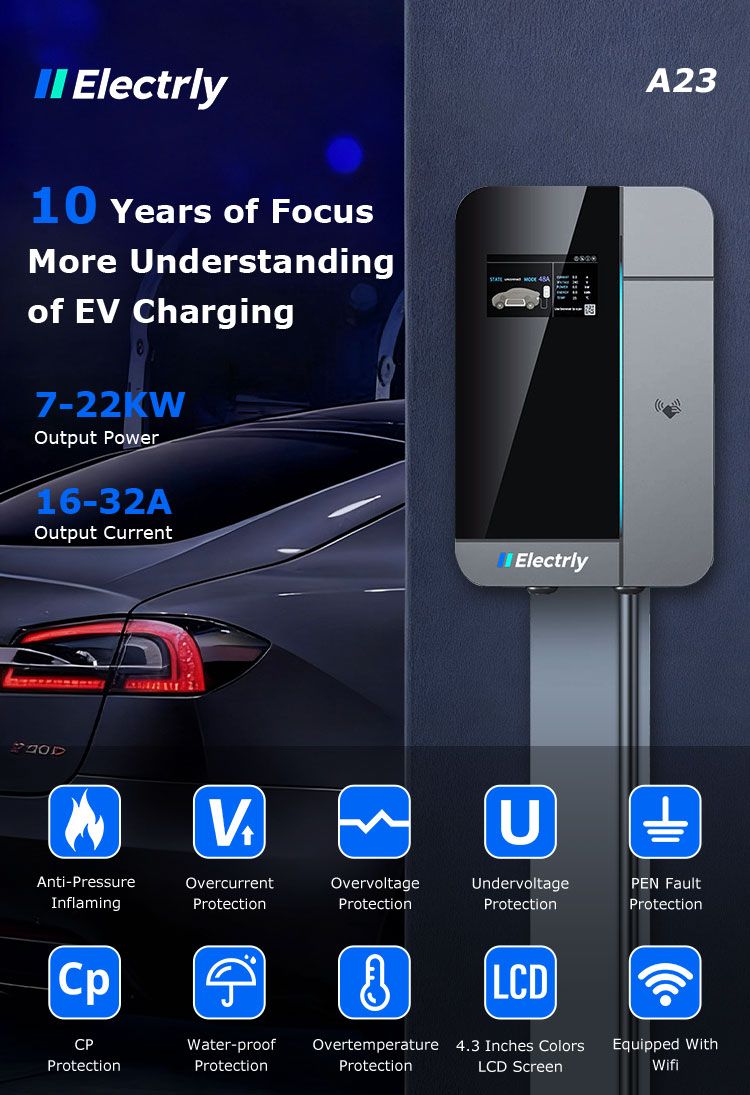

Volt Go - A23 Images
Electri Charge A19/A20/A21/A23 Full Specs
| 7KW | 11KW | 22KW | |
|---|---|---|---|
| Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Rated Voltage | AC 220-240V | AC 380-400V | AC 380-400V |
| Rated Current | 32A (32A, 16A, 10A adjustable) | 16A (16A, 10A adjustable) | 32A (32A, 16A, 10A adjustable) |
| Output Voltage | AC 220-240V | AC 380-400V | AC 380-400V |
| Maximum Current | 32A (32A*2, 16A, 10A adjustable) | 16A (16A, 10A adjustable) | 32A (32A, 16A, 10A adjustable) |
| Rated Power | 7KW | 11KW | 22KW |
| Charger Connector | Type 2 Cable | Type 2 Cable | Type 2 Cable |
| Cable Length | 5 m | 5 m | 5 m |
| Material | ABS | ABS | ABS |
| Color | Black+Silver | Black+Silver | Black+Silver |
| Three Color LED | Yes | Yes | Yes |
| LED Display | A19&A20: 5" LED Screen A21&A23: 4.3" LED Screen |
A19&A20: 5" LED Screen A21&A23: 4.3" LED Screen |
A19&A20: 5" LED Screen A21&A23: 4.3" LED Screen |
| Plug in and Charge | Yes | Yes | Yes |
| Cellphone Control | Yes | Yes | Yes |
| MID Energy Meter | No | No | No |
| WiFi/Bluetooth | Yes | Yes | Yes |
| Ethernet/LAN | No | No | No |
| 4G/SIM | No | No | No |
| OCPP 1.6J Ethernet | Yes | Yes | Yes |

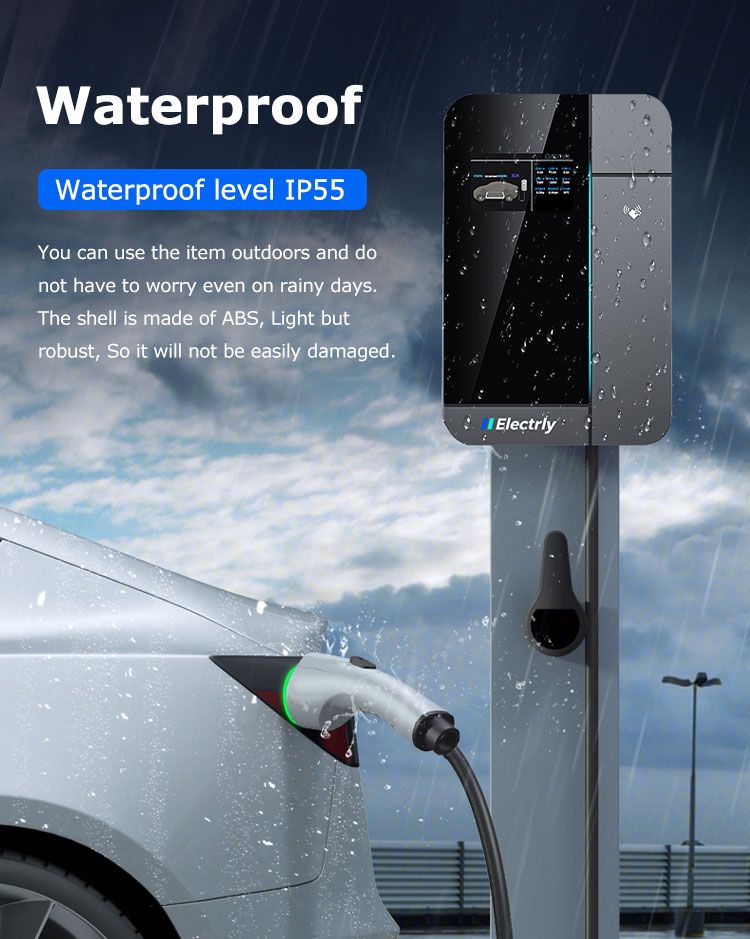

| Ingress Protection | Outshell IP65 | Outshell IP65 | Outshell IP65 |
| Impact Protection | IK10 | IK10 | IK10 |
| Overcurrent Protection | Yes | Yes | Yes |
| Residual Current Protection (AC 30mA + DC 6mA) | Yes | Yes | Yes |
| Ground Monitor | Yes | Yes | Yes |
| Surge Protection | Yes | Yes | Yes |
| Over/Under Voltage Protection | Yes | Yes | Yes |
| Over Temperature | Yes | Yes | Yes |
| Certification | CE | CE | CE |
| Certification Standard | EN IEC 61851, EN 62196 | EN IEC 61851, EN 62196 | EN IEC 61851, EN 62196 |
| Warranty | 2 years | 2 years | 2 years |
| Installation | Wall-mount / Pole-mount | Wall-mount / Pole-mount | Wall-mount / Pole-mount |
| Work Temperature | -25°C to 50°C | -25°C to 50°C | -25°C to 50°C |
| Work Humidity | 3% to 95% | 3% to 95% | 3% to 95% |
| Work Altitude | < 2000m | < 2000m | < 2000m |
| Production Dimension (H*W*D) mm | 385*284*80 mm | 385*284*80 mm | 385*284*80 mm |
| Package Dimension (L*W*H) mm | 500*340*220 mm | 500*340*220 mm | 500*340*220 mm |
| Net Weight | 6.5 kg | 6.5 kg | 6.5 kg |
| Gross Weight | 8 kg | 8 kg | 8 kg |
| External Package | Carton | Carton | Carton |
