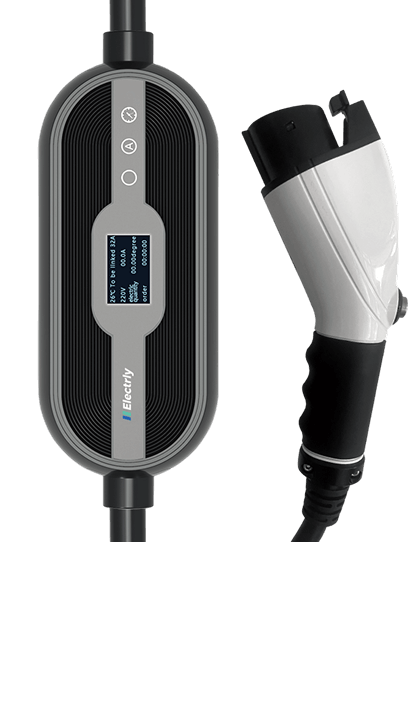

Flexi Charge - A56
Portable leve 2 home charger with enhanced convenience and reliability
Convenient Portable Home Charger
Flexi Charge A56 is a sleek and powerful portable EV charging solution designed for the modern home use. With 3.5 kW and 7 kW power output options and universal Type 2 compatibility, this beautifully crafted charger combines convenience and reliability with smart technology.
3.5 kW/7 kW power delivery
Type 2 connectors
Wi-Fi and Bluetooth connectivity
Overtemperature protection
Certification:
Flexi Charge - A56 Full Specs
| 3.5kW EU Standard | 7kW EU Standard | |
|---|---|---|
| Power Supply | 1P+N+PE | 1P+N+PE |
| Rated Voltage | AC 220-240V | AC 220-240V |
| Rated Current | 16A (16A, 10A adjustable) | 32A (32A, 16A, 10A adjustable) |
| Output Voltage | AC 220-240V | AC 220-240V |
| Maximum Current | 16A (16A, 10A adjustable) | 32A (32A, 16A, 10A adjustable) |
| Rated Power | 3.5kW | 7kW |
| Charger Connector | Type 2 Cable | Type 2 Cable |
| Cable Length | 5m | 5m |
| Material | ABS | ABS |
| Color | Black+Silver | Black+Silver |
| LED Display | 1.3" LED screen | 1.3" LED screen |
| Plug in and Charge | Yes | Yes |
| Cellphone Control | Yes | Yes |
| MID Energy Meter | No | No |
| WiFi/Bluetooth | Yes | Yes |
| Ethernet/LAN | No | No |
| 4G/SIM | No | No |
| OCPP 1.6J | No | No |
| Ingress Protection | IP65 | IP65 |
| Impact Protection | IK10 | IK10 |
| Over Current Protection | Yes | Yes |
| Residual Current Protection (AC 30mA, DC 6mA) | Yes | Yes |
| Ground Monitor | Yes | Yes |
| Surge Protection | Yes | Yes |
| Over/Under Voltage Protection | Yes | Yes |
| Over Temperature Protection | Yes | Yes |
| Certification | CE | CE |
| Certification Standard | EN IEC 61851, EN 62196 | EN IEC 61851, EN 62196 |
| Warranty | 2 years | 2 years |
| Working Temperature | -25°C to 50°C | -25°C to 50°C |
| Working Humidity | 3% to 95% | 3% to 95% |
| Working Altitude | <2000m | <2000m |
| Product Dimensions (H×W×D) | 298×106×53mm | 298×106×53mm |
| Package Dimensions (L×W×H) | 400×320×180mm | 400×320×180mm |
| Net Weight | 4.2kg | 4.2kg |
| Gross Weight | 5kg | 5kg |
| External Package | Carton | Carton |
